COMMERCIAL SWING GATE OPERATORS

Keep traffic flowing and properties secure with LiftMaster commercial swing gate operators.
Smart and powerful, these operators can handle any demand out there.

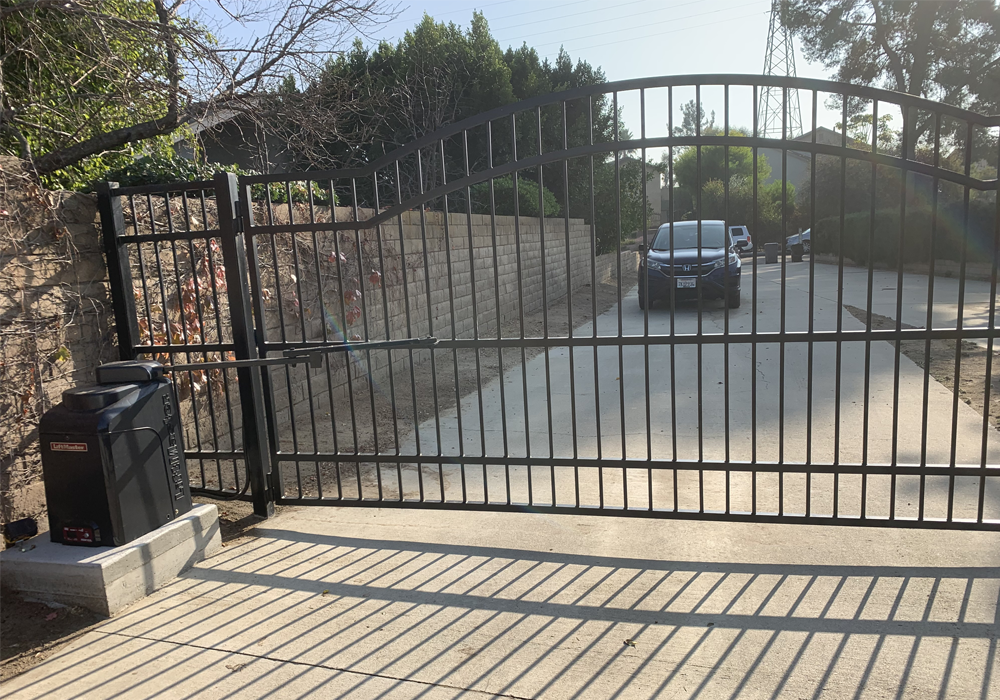

HDSW24UL

24VDC Heavy-Duty Variable Speed Swing Gate Operator

Ideal for heavy gate and extreme applications.
Rated for gates up to 22 ft. or up to 2,800 lbs, 4,500 lbs. with optional arm.
Variable cycle speed of 13 – 36 sec for a 90 degree opening.

FEATURES

Gate Safety and Security

UL Listed

Tested to the most stringent UL 325 industry guidelines. Secondary entrapment devices need to be added to meet UL325 standards. Your Installer will recommend suitable secondary entrapment devices for your installation, such as photo eyes or edge sensors.

Gate Safety Sensors

Protect people entering or leaving through your gate with safety sensors that stop the gate from closing on obstructions

Sync

Synchronizes gate operation and eliminates costly trenching; set speed independently if needed.

SPECIFICATIONS

Voltage	120/240 VAC Single Phase
Battery Backup	Yes
myQ Compatibility	Yes
Solar	Solar-ready
Variable Speed	Yes

Motor Power	1.5 HP Peak Brushless Motor
Soft Start / Stop	Yes
Operator Duty Rating	Continuous Duty, High-Cycle, High-Temperature
UL Usage Classification	I, II, III & IV

WARRANTY

Operator Warranty: 7 Years Residential, 5 Years Commercial

WHAT'S INCLUDED

LMRRUL

Monitored Retro Reflective Photo Eye
